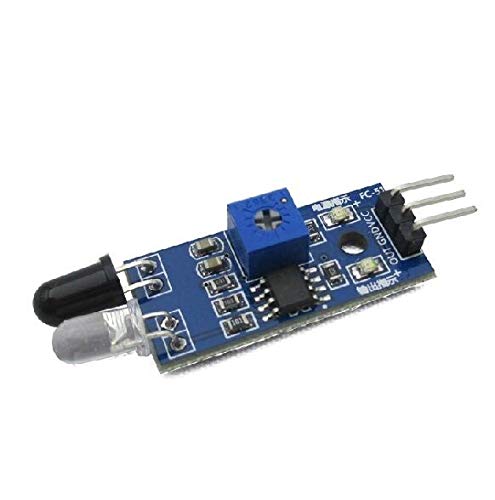

Product Description:无标题文档Description:1. When the module detects an obstacle in front of the signal , the green indicator light on the board level , while low-level continuous output signal OUT port , the module detects the distance 2 ~ 30cm, detection angle 35 °, the distance can detect potential is adjusted clockwise adjustment potentiometer to detect the distance increases ; counterclockwise to adjust the potentiometer to reduce the detection distance .2 .active infrared sensors to detect the reflected , and thus the shape of the reflectivity of the target detection range is critical . The minimum detection distance which black , white maximum ; small objects from a small area , a large area from the Grand .3 . the output port OUT sensor module can be directly connected to the microcontroller IO port , you can directly drive a 5V relay ; Connection : VCC-VCC; GND-GND; OUT-IO4 .using the comparator LM393, stable ;5 .can be used for 3-5V DC power supply modules . When the power is turned on, the red powerindicator light ;6. with the screw holes of 3mm , easy fixed installation ;7. board size : 3.1CM * 1.5CM8. each module
